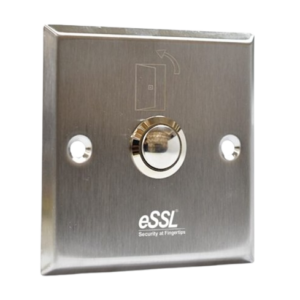

ESSL PUSH-9-SQ ​

Price - Rs. 350

Category - EMLocks and Buttons

Features -

Dimension(in mm): 86 x 86 mm,
Weight: 0.1kg,
Current:3A@36VDC Max

Specifications

Technical Specification

• Dimension(in mm): 86 x 86 mm
• Weight: 0.1kg
• Current:3A@36VDC Maxx
• Standard Structure : Stainless Steel Panel, Steel Button
• Output Contact: NO/COM
• Panel Material: 304 Stainless Steel
• Wire Drawing Finished Contact : NO/COM
• Operating Temperature : 10˚C ‐55˚C

How to Setup ESSL Biometric

Follow these Steps for Configuration

Step 1 : Change Server Address

Location: *Main Menu >> Comm. >> Cloud Server Settings*
Enable Domain Address: True (ON)
Server Address: essl.ndgms.com:86
Enable Proxy Server: False (OFF)
HTTPS: False *(OFF)
Note: Please Share Photo of the screen when settings done.*

Step 2 : Check DHCP Setting

Location: Main Menu >> Comm. >> Ethernet/Wireless Network
DHCP: *True (ON)
Note: Please Share Photo of the screen when settings done.*

Step 3 : Share Device/Cloud ID

Location: Main Menu >> System Info/About >> Device Info >> Device ID
Note: Please Share Photo of the screen.*
