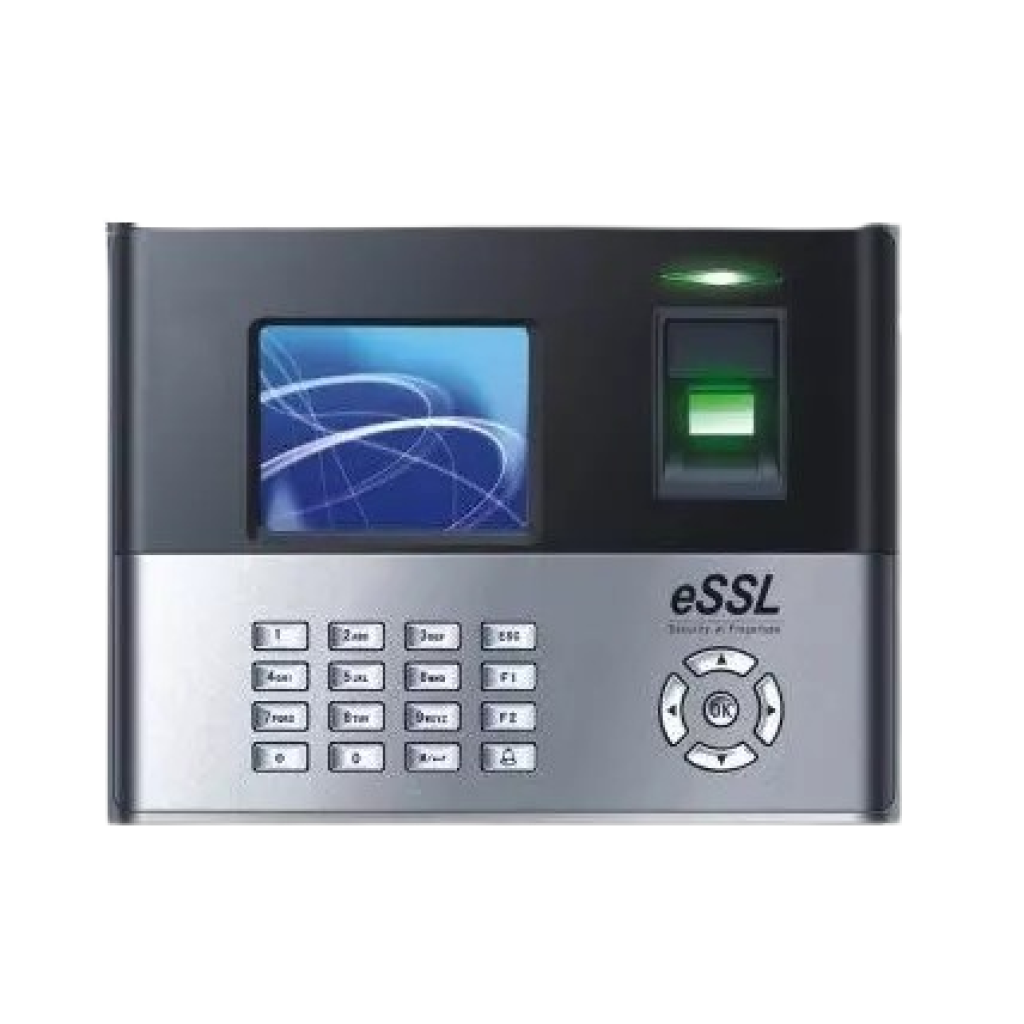

ESSL X990

Price - Rs. 13000

Category - Finger Print

Features -

Fingerprint Capacity : 10000,
Transaction Capacity : 100000,
Card Capacity : 10000 ,
Fingerprint sensor : 500 DPI Optical sensor

Specifications

Storage Capacity

• Fingerprint Capacity : 10000
• Card Capacity : 10000
• Transaction Capacity : 100000
• Card Reader : Inbuilt proximity card reader (Optional Mifare, HID prox)
• CPU : 32bit microprocessor
• SDRAM : 128 MB Nand Flash
• Flash : 256 MB Nand Flash
• Kernel : 2.6

Biometric

• Fingerprint sensor : 500 DPI Optical sensor
• FAR : <=0.0001%
• FRR : <=1%
• Identification speed : <0.5 sec
• Algorithm Ver : 10

Audio/Visuals

• Display : 3" Color TFT
• Keypad : Yes
• LED Indicator : Green/Red
• Schedule Bell/Speaker : Mini Speaker

Communication

• TCP/IP, USB, (Optional : WiFi, GPRS)
• Push data : Yes (support both static IP and domain server) Standard Features : work code,SMS,DLST, Self service query, Status Switch

Power & Environment

• Power Supply : DC 12V --- 1.5Amp
• Operating Temperature : 0oC - 45oC
• Operating Humidity : 20% - 80%
• Dimension(in mm) : (L)210 x (W)157 x (H)40

Access Control

• Wiegand : In & Out both 26 or 34 bit (With or without site code)
• Relay : 12 V relay for lock EM lock, Bolt Lock or Strike lock
• Support Fire Alarm : Yes
• Door Sensor : Yes
• Anti Passback : Yes
• Door Bell : Yes

Exit Readers

• Support exit readers : 101 HE , FR 1200, Push Button, KR500, Notouch, KR503

Optional

• Battery : Yes
• Card readers : Mifare/HID Prox
• Communication : WiFi/GPRS
• Sensor : Mifare/HID Prox

Compatibility

• Compatible with Multi Door controllers via weigand
• External Speaker output available (Optional)
• External Bulb output available (Optional)
• Support External Printer

Compatible Software and SDK

• eTimeTrackLite desktop & web
• SDK for desktop applications
• Web based Device Management application using Push data. Helps developers & integrators
• Supports 3rd Party Payroll/HRMS/ERP and Other applications

Major Applications

• Time & Attendance , Canteen Management, School Attedance, Production Management, Gym & clubs

4-in-1 Feature Combo

All essential tools combined for a seamless experience

Price: Rs. 15,400 (Rs.1,000 courier charges will be extra)

ESSL X990

Rs.13000

EM Lock

Rs.1600

L/U Bracket

Rs.450

Exit Switch

Rs.350

How to Setup ESSL Biometric

Follow these Steps for Configuration

Step 1 : Change Server Address

Location: *Main Menu >> Comm. >> Cloud Server Settings*
Enable Domain Address: True (ON)
Server Address: essl.ndgms.com:86
Enable Proxy Server: False (OFF)
HTTPS: False *(OFF)
Note: Please Share Photo of the screen when settings done.*

Step 2 : Check DHCP Setting

Location: Main Menu >> Comm. >> Ethernet/Wireless Network
DHCP: *True (ON)
Note: Please Share Photo of the screen when settings done.*

Step 3 : Share Device/Cloud ID

Location: Main Menu >> System Info/About >> Device Info >> Device ID
Note: Please Share Photo of the screen.*

Setup Tutorial

Watch Video Tutorial Here

See Video
