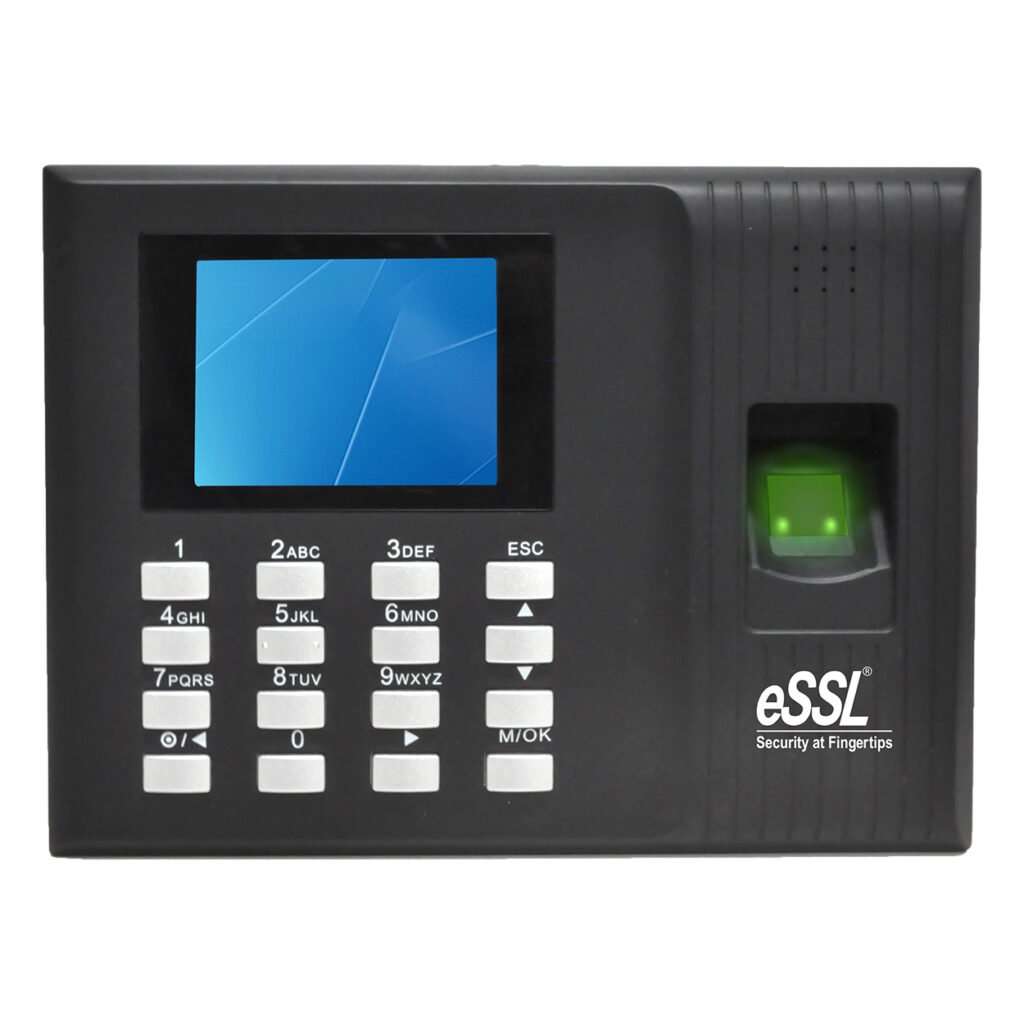

ESSL K90 Pro

Price - Rs. 5500

Category – Finger Print

Fingerprint Time & Attendance with Access Control System –Fingerprints Capacity : 800 ,
Card Capacity : 800 ,
Transaction Storage : 80,000 ,
Push Data : Yes



Note : “We strongly recommend contacting your vendor to request a firmware update that includes the auto-block feature.”

Specifications

Technical Specification

  • Fingerprints Capacity : 800
  • Card Capacity : 800
  • Transaction Storage : 80,000
  • Push Data : Yes
  • Card Reader : Yes
  • Card Reader: Yes
  • Fingerprint sensor : 500 DPI Optical Sensor
  • FAR : <=0.0001% / FRR : <=1%
  • Identication Speed: <= 1sec
  • Algorithm Ver: 10
  • LED Indicator: Green/Red
  • Schedule Bell/Speaker: Mini Speaker
  • Communication: TCP/IP, USB-host
  • Standard Features: Inbuilt Battery Backup,
  • Self Service Query,SSR Recorder,Automatic
  • Status Switch, DST, T9 Input
  • Power Supply: 12V DC, 1.5 Amps
  • Operating Temprature: 0°C to 45°C
  • Operating Humidity: 20% - 80%
  • Dimension : 185 x 140 x 30mm
  • Access Control - Relay : 12V

Exit Readers

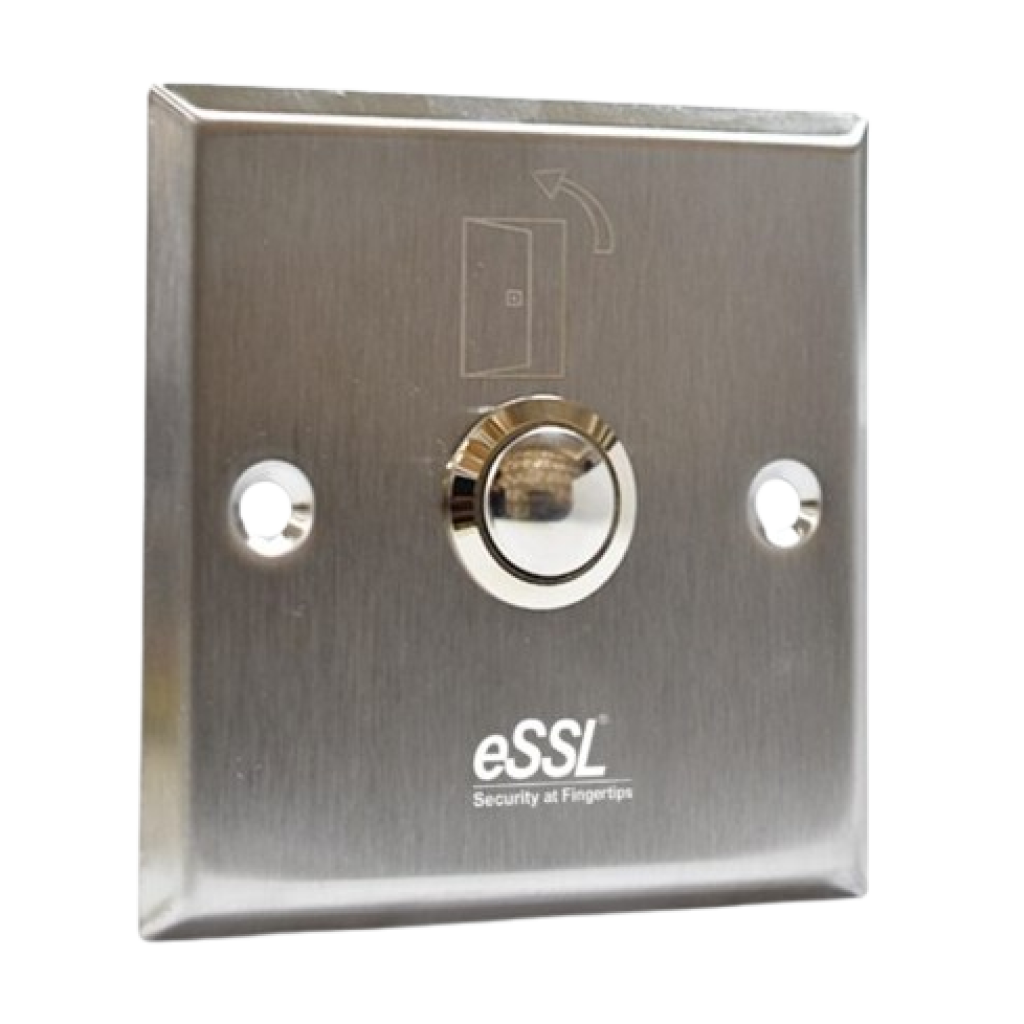

  • Support exit readers : Push Button
  • Dual Mode : Either SSR Mode or Software Mode

Compatible Software & SDK

  • eTimeTracklite desktop, web & Cloud

Major Applications

  • Time & Attendance , Canteen management, School attendance, Production Management, Gym & clubs

How to Setup ESSL Biometric

Follow these Steps for Configuration

Step 1 : Change Server Address

Location: *Main Menu >> Comm. >> Cloud Server Settings*
Enable Domain Address: True (ON)
Server Address: essl.ndgms.com:86
Enable Proxy Server: False (OFF)
HTTPS: False *(OFF)
Note: Please Share Photo of the screen when settings done.*

Step 2 : Check DHCP Setting

Location: Main Menu >> Comm. >> Ethernet/Wireless Network
DHCP: *True (ON)
Note: Please Share Photo of the screen when settings done.*

Step 3 : Share Device/Cloud ID

Location: Main Menu >> System Info/About >> Device Info >> Device ID
Note: Please Share Photo of the screen.*

Setup Tutorial

Watch Video Tutorial Here
