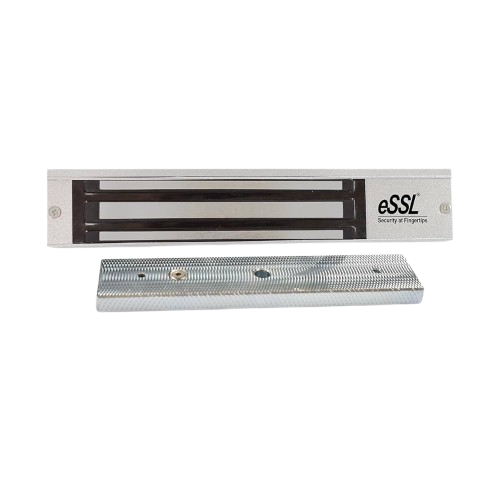

ESSL EM Lock

Price - Rs. 3200

Category - EMLocks and Buttons

Features -

Size: 250L*47W*25.4H(mm),
Input Voltage: DC12V ,
Holding Force: 280KG/600LBS,
Surface Temp ≤±40℃

Specifications

Technical Specification

• Size: 250L*47W*25.4H(mm)
• Input Voltage: DC12V
• Holding Force: 280KG/600LBS
• Surface Temp ≤±40℃
• Operation Temp: -10℃~+55℃
• Humidity: 0~99% (non-condensing)
• Cover Finish: anodized aluminum
• Lock Finish: zinc
• Armature Plate Finish: zinc

How to Setup ESSL Biometric

Follow these Steps for Configuration

Step 1 : Change Server Address

Location: *Main Menu >> Comm. >> Cloud Server Settings*
Enable Domain Address: True (ON)
Server Address: essl.ndgms.com:86
Enable Proxy Server: False (OFF)
HTTPS: False *(OFF)
Note: Please Share Photo of the screen when settings done.*

Step 2 : Check DHCP Setting

Location: Main Menu >> Comm. >> Ethernet/Wireless Network
DHCP: *True (ON)
Note: Please Share Photo of the screen when settings done.*

Step 3 : Share Device/Cloud ID

Location: Main Menu >> System Info/About >> Device Info >> Device ID
Note: Please Share Photo of the screen.*

Setup Tutorial

Watch Video Tutorial Here

See Video
