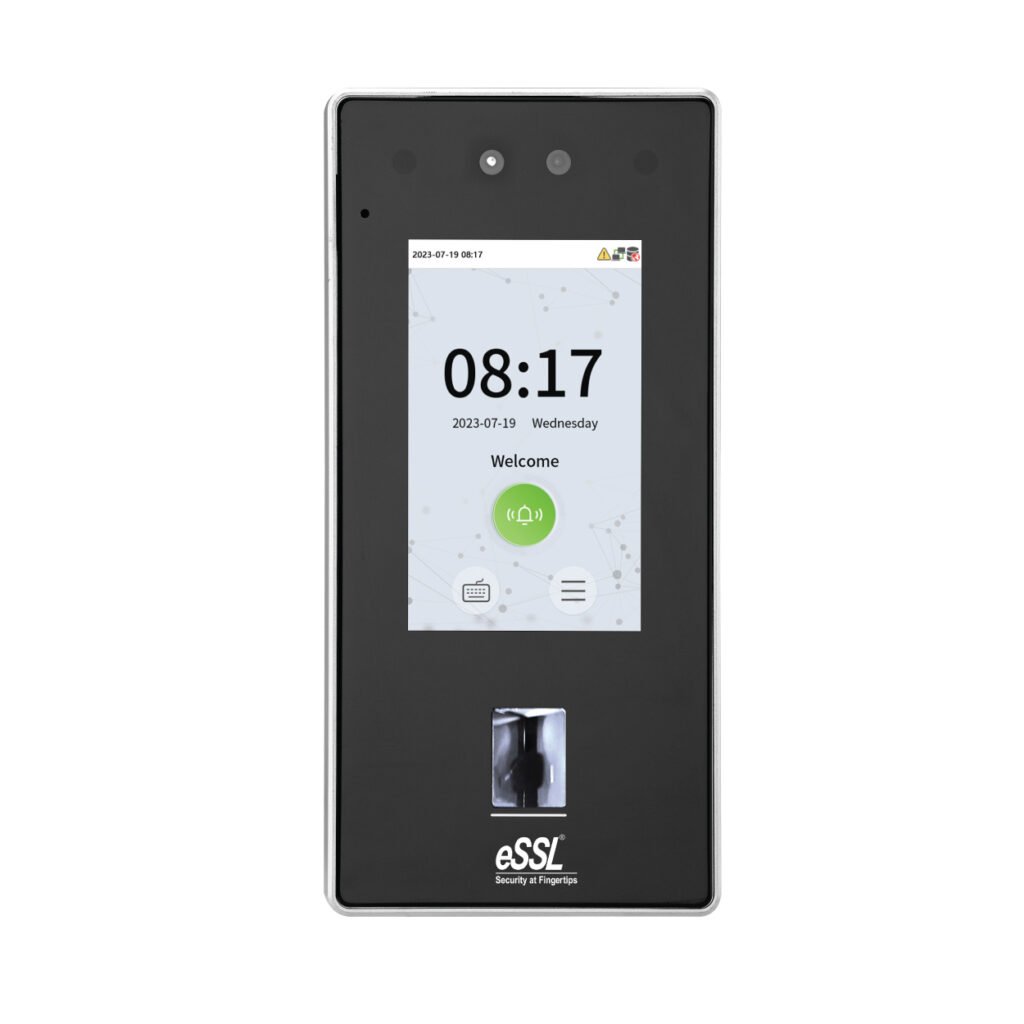

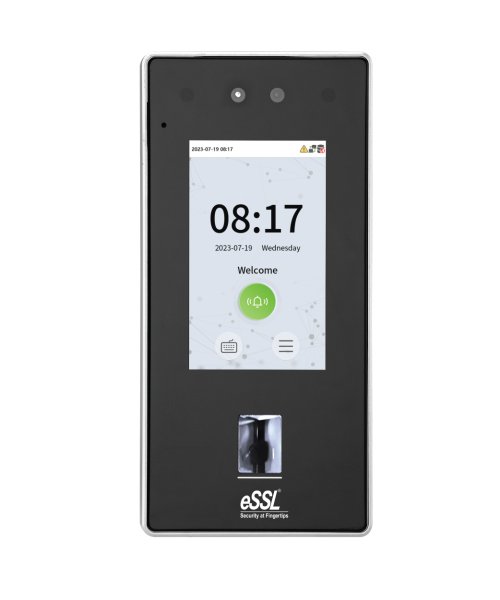

Aiface Eris

Price - Rs. 20,000

Category – Face

Features  :

Display : 4-inch color LED touch screen,
Camera : 2MP binocular camera,
Operation System : Linux,
Authentication method : Face / Fingerprint / Card/ Password ,
Hardware : CPU: Dual Core@1GHz ,RAM: 1GB ,ROM: 8GB

Specifications

Technical Specification

• Display : 4-inch color LED touch screen
• Camera : 2MP binocular camera
• Operation System : Linux
• Hardware : CPU: Dual Core@1GHz ,RAM: 1GB ,ROM: 8GB
• Authentication method : Face / Fingerprint / Card/ Password
• User Capacity : 3000
• Face Template Capacity : 3000
• Fingerprint Template Capacity : 3000
• Card Capacity : 3000
• Transaction Capacity : 2,00,000
• Biometric Verification Speed : < 0.35s (Facial Recognition), < 0.5s (Fingerprint Recognition)
• False Acceptance Rate (FAR) % : ≤0.01% (Facial Recognition) , ≤0.0001% (Fingerprint)
• False Rejection Rate (FRR) % : ≤0.02% (Facial Recognition) , ≤0.01% (Fingerprint)
• Optional Card Type : HID Prox@125 kHz , Mifare@13.56 MHz
• Communication : TCP/IP, Wiegand (Input & Output),RS485,Wi-Fi
• Push Data : Yes
• Access Control Interface : Electro Magnetic Lock/ Electric Lock, Door Sensor, Exit Button, Alarm Output
• Power Supply : DC 12V 3A
• Operating Temperature : -5°c to 45°c
• Operating Humidity : 10% to 90% RH
• Dimensions : 183 mm*88 mm*20.5 mm (L*W*H)
• Supported Software : eTimetracklite Software, ebioServer

4-in-1 Feature Combo

All essential tools combined for a seamless experience

Price: Rs. 22,400(Rs.1,000 courier charges will be extra)

AiFace Eris

Rs.20000

EM Lock

Rs.1600

L/U Bracket

Rs.450

Exit Switch

Rs.350

How to Setup ESSL Biometric

Follow these Steps for Configuration

Step 1 : Change Server Address

Location: *Main Menu >> Comm. >> Cloud Server Settings*
Enable Domain Address: True (ON)
Server Address: essl.ndgms.com:86
Enable Proxy Server: False (OFF)
HTTPS: False *(OFF)
Note: Please Share Photo of the screen when settings done.*

Step 2 : Check DHCP Setting

Location: Main Menu >> Comm. >> Ethernet/Wireless Network
DHCP: *True (ON)
Note: Please Share Photo of the screen when settings done.*

Step 3 : Share Device/Cloud ID

Location: Main Menu >> System Info/About >> Device Info >> Device ID
Note: Please Share Photo of the screen.*

Setup Tutorial

Watch Video Tutorial Here

See Video
